Alumina Ceramic Reflector

Product Item : CRL031
Category： Ceramic Laser Reflectors
Material: Alumina ceramic
Purity: 99%
Reflection type: Diffused
Minimum Order Quantity: 2 pieces
INQUIRY EMAIL

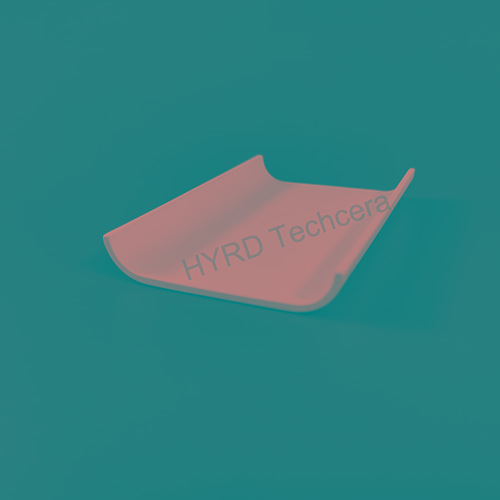

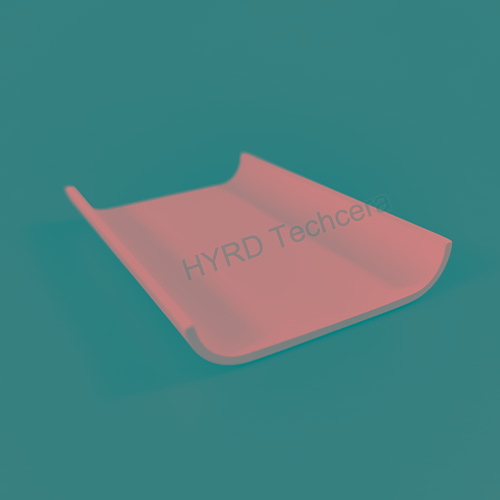

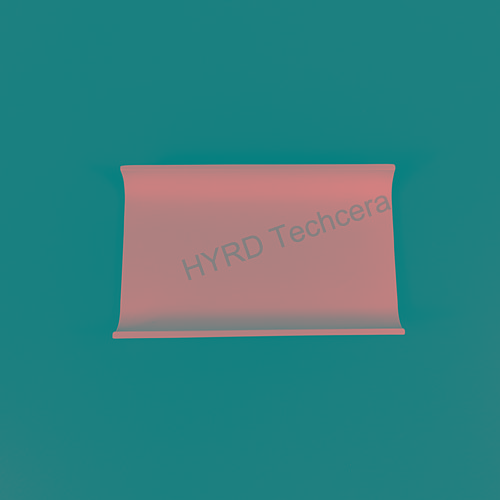

Alumina Ceramic Reflector

This alumina ceramic reflector insert is with good reflectivity allows the beam to spread evenly and absorb more laser line energy inside the cavity, thereby increasing the bandwidth of the laser. It is a type of laser optical cavity material with excellent stability and long lifespan.

Main Physical Characteristics

Material	Alumina ceramic
Purity	99%
Color	White
Bulk Density (fired)	3.1g/cm3
Porosity	22%
Surface Treatment	Glazed
Bending Strength	170MPa
Thermal expansion coefficient	7.9×10-6/C (200-500℃)
Thermal expansion coefficient	9×10-6/C (200～1000℃)
Thermal shock resistance	No crack when temperature from 15-100℃ for 150 times

Applications
These characteristics of ceramic reflectors make them perform better in applications that require higher average power and lower peak power. Such as:
• Laser Welding Machine,
• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
