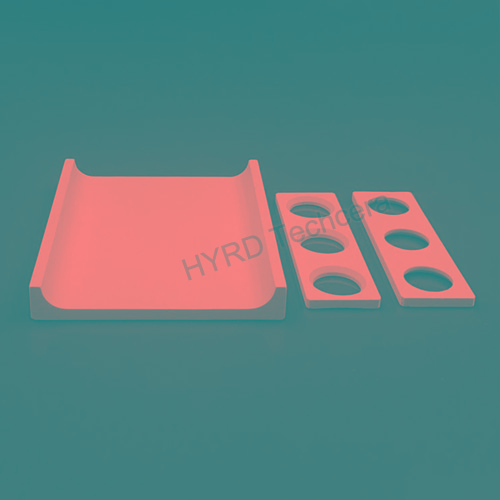

Ceramic Reflector Insert for Laser Head

Product Item : CRL030
Category： Ceramic Laser Reflectors
Material: Al3O2
Purity: 99%
Reflection type: Diffused
Porosity: 22%
INQUIRY EMAIL

Ceramic Reflector Insert for Laser Head

This ceramic reflector is used in Laser head.‌
Ceramic reflector is a type of laser optical cavity material with excellent stability and long lifespan. Its low reflectivity allows the beam to spread evenly and absorb more laser line energy inside the cavity, thereby increasing the bandwidth of the laser. These characteristics of ceramic reflectors make them perform better in applications that require higher average power and lower peak power.
Cynosure Ceramic Reflector Insert for Laser Head

Cynosure Ceramic Reflector Insert for Laser Head

Product Features

• Easy to produce
• Low production cost
• Large size
• Multi-functionality
• Mass production

Main Physical Characteristics

Material	Alumina ceramic
Purity	99%
Color	White
Bulk Density (fired)	3.1g/cm3
Porosity	22%
Surface Treatment	Glazed
Bending Strength	170MPa
Thermal expansion coefficient	7.9×10-6/C (200-500℃)
Thermal expansion coefficient	9×10-6/C (200～1000℃)
Thermal shock resistance	No crack when temperature from 15-100℃ for 150 times

Tags: Ceramic Reflector Insert for Medical laser machine
